anna::diameter::comm::Session Class Reference

#include <Session.hpp>

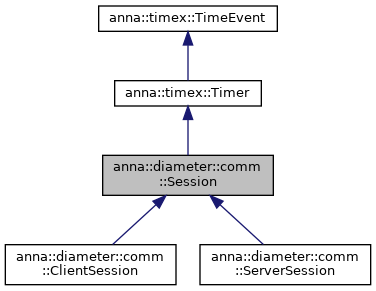

Inheritance diagram for anna::diameter::comm::Session:

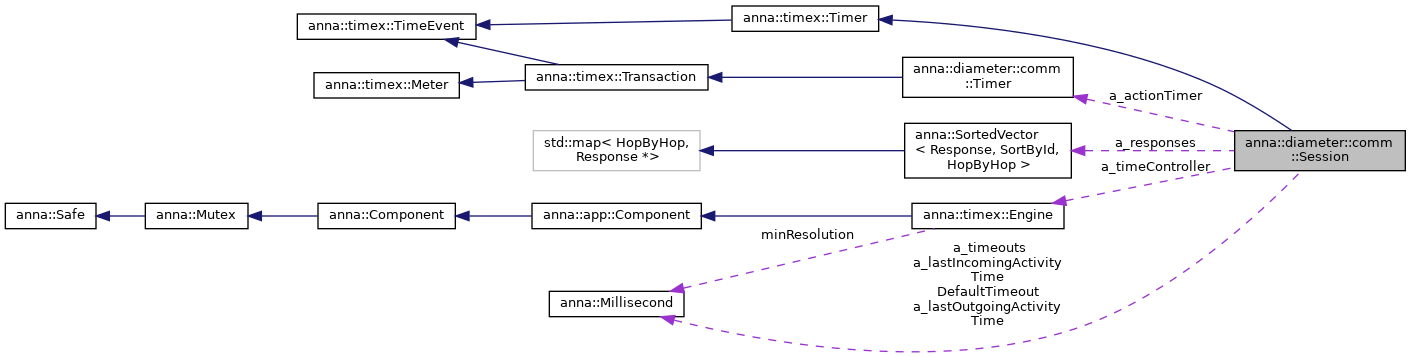

Collaboration diagram for anna::diameter::comm::Session:

Classes
struct	OnDisconnect
struct	SortById
struct	State

Public Member Functions
	Session (const char *className, const char *timerName)
State::_v	getState () const
void	setOnDisconnect (const OnDisconnect::_v onDisconnect)
OnDisconnect::_v	getOnDisconnect () const
virtual const std::string &	getAddress () const =0
virtual int	getPort () const =0
int	getSocketId () const
const HopByHop &	getNextHopByHop () const
const EndToEnd &	getNextEndToEnd () const
void	setClassCodeTimeout (const ClassCode::_v v, const anna::Millisecond &millisecond)
anna::Millisecond	getClassCodeTimeout (const ClassCode::_v v) const
bool	isBound () const
virtual const Response *	send (const Message *message) noexcept(false)=0
const Response *	send (const Message &message) noexcept(false)
virtual bool	unbind (bool forceDisconnect=false) noexcept(false)=0
const anna::Millisecond &	getLastIncomingActivityTime () const
const anna::Millisecond &	getLastOutgoingActivityTime () const
int	getOTARequests () const
bool	idle () const
void	notifyOrphansOnExpiration (bool defer=true)
virtual std::string	asString () const
virtual anna::xml::Node *	asXML (anna::xml::Node *parent) const
Public Member Functions inherited from anna::timex::Timer
	Timer (const char *name, const Millisecond &timeout)
std::string	asString () const
Public Member Functions inherited from anna::timex::TimeEvent
virtual	~TimeEvent ()
Id	getId () const
const Millisecond &	getTimeout () const
const TimeEventObserver *	getObserver () const
void	setId (const Id id)
void	setTimeout (const Millisecond &timeout)
void	setObserver (TimeEventObserver *observer)
bool	isActive () const

Static Public Attributes
static const anna::Millisecond	DefaultTimeout
static const int	DefaultPort

Protected Types
typedef anna::SortedVector< Response, SortById, HopByHop >	response_container
typedef response_container::iterator	response_iterator
typedef response_container::const_iterator	const_response_iterator

Protected Member Functions
virtual void	initialize ()
void	initializeSequences ()
void	generateNextSequences ()
void	response_add (Response *response)
void	response_erase (Response *response)
Response *	response_find (const HopByHop hopByHop) noexcept(false)
response_iterator	response_begin ()
response_iterator	response_end ()
const_response_iterator	response_begin () const
const_response_iterator	response_end () const
virtual void	updateIncomingActivityTime ()
virtual void	updateOutgoingActivityTime ()
virtual void	expire (anna::timex::Engine *timeController) noexcept(false)
virtual void	eventPeerShutdown ()=0
virtual void	eventRequestRetransmission (Message *request)=0
virtual void	eventResponse (const Response &response, const anna::diameter::comm::OriginHost *myNode) noexcept(false)=0
virtual void	eventRequest (const anna::DataBlock &request, const anna::diameter::comm::OriginHost *myNode) noexcept(false)=0
virtual void	eventUnknownResponse (const anna::DataBlock &response, const anna::diameter::comm::OriginHost *myNode) noexcept(false)=0
virtual void	eventDPA (const anna::DataBlock &response, const anna::diameter::comm::OriginHost *myNode) noexcept(false)=0
virtual void	receive (const anna::comm::Message &message) noexcept(false)=0
virtual void	finalize ()
virtual void	expireResponse (Response *)
void	sendDPA (const Engine *commEngine, const anna::DataBlock &dprDataBlock) noexcept(false)
void	activateActionTimer (const anna::diameter::comm::Timer::Type::_v type)
void	cancelActionTimer ()
void	activateTimer ()
void	cancelTimer ()
virtual void	timerStopped ()
virtual void	timerStarted ()
virtual void	setState (State::_v state)
Protected Member Functions inherited from anna::timex::TimeEvent
	TimeEvent ()
	TimeEvent (const Id id, const Millisecond &timeout)
virtual void	stop () noexcept(false)

Static Protected Member Functions
static Response *	response (response_iterator ii)
static const Response *	response (const_response_iterator ii)
static const char *	asText (const State::_v)
static const char *	asText (const OnDisconnect::_v)

Protected Attributes
const char *	a_className
int	a_socketId
State::_v	a_state
OnDisconnect::_v	a_onDisconnect
anna::diameter::comm::Timer *	a_actionTimer
HopByHop	a_nextHopByHop
EndToEnd	a_nextEndToEnd
response_container	a_responses
bool	a_notifyOrphansOnExpiration
anna::timex::Engine *	a_timeController
anna::Millisecond	a_lastIncomingActivityTime
anna::Millisecond	a_lastOutgoingActivityTime
anna::Millisecond	a_timeouts [ClassCode::Max]

Friends
class	anna::diameter::comm::Timer
class	Response

Additional Inherited Members
Public Types inherited from anna::timex::TimeEvent
typedef anna::ptrnumber	Id

Detailed Description

Modela la conexion realizada contra un servidor diameter.

Member Typedef Documentation

const_response_iterator

typedef response_container::const_iterator anna::diameter::comm::Session::const_response_iterator

protected

response_container

typedef anna::SortedVector<Response, SortById, HopByHop> anna::diameter::comm::Session::response_container

protected

response_iterator

typedef response_container::iterator anna::diameter::comm::Session::response_iterator

protected

Constructor & Destructor Documentation

Session()

anna::diameter::comm::Session::Session	(	const char *	className,
		const char *	timerName
	)

Member Function Documentation

activateActionTimer()

void anna::diameter::comm::Session::activateActionTimer ( const anna::diameter::comm::Timer::Type::_v  type )

protected

activateTimer()

void anna::diameter::comm::Session::activateTimer ( )

protected

asString()

virtual std::string anna::diameter::comm::Session::asString ( ) const

virtual

Class string representation

Returns

String with relevant information for this instance.

Reimplemented from anna::timex::TimeEvent.

Reimplemented in anna::diameter::comm::ClientSession, and anna::diameter::comm::ServerSession.

asText() [1/2]

static const char* anna::diameter::comm::Session::asText ( const State::_v  )

staticprotected

asText() [2/2]

static const char* anna::diameter::comm::Session::asText ( const OnDisconnect::_v  )

staticprotected

asXML()

virtual anna::xml::Node* anna::diameter::comm::Session::asXML ( anna::xml::Node *  parent ) const

virtual

Class xml representation

Parameters

parent

Parent XML node on which hold this instance information.

Returns

XML document with relevant information for this instance.

Reimplemented in anna::diameter::comm::ClientSession, and anna::diameter::comm::ServerSession.

cancelActionTimer()

void anna::diameter::comm::Session::cancelActionTimer ( )

protected

cancelTimer()

void anna::diameter::comm::Session::cancelTimer ( )

protected

eventDPA()

virtual void anna::diameter::comm::Session::eventDPA ( const anna::DataBlock &  response, const anna::diameter::comm::OriginHost *  myNode  )

protectedpure virtualnoexcept

Handler for diameter session Disconnect-Peer-Answer messages

Parameters

response	Answer data block object without context match
myNode	Own origin host

eventPeerShutdown()

virtual void anna::diameter::comm::Session::eventPeerShutdown ( )

protectedpure virtual

Handler about event break connection over the session.

When notified, ANNA.diameter.comm generates an diameter::comm::ClientSession::eventResponse for every request with pending answers.

eventRequest()

virtual void anna::diameter::comm::Session::eventRequest ( const anna::DataBlock &  request, const anna::diameter::comm::OriginHost *  myNode  )

protectedpure virtualnoexcept

Handler for diameter session requests

Parameters

request	Request container object for corresponding diameter reception
myNode	Own origin host

eventRequestRetransmission()

virtual void anna::diameter::comm::Session::eventRequestRetransmission ( Message *  request )

protectedpure virtual

Handler about a request retransmission over the session.

Parameters

request

Message retransmitted

eventResponse()

virtual void anna::diameter::comm::Session::eventResponse ( const Response &  response, const anna::diameter::comm::OriginHost *  myNode  )

protectedpure virtualnoexcept

Handler for diameter session responses

Parameters

response	Answer data block object for corresponding diameter request
myNode	Own origin host

eventUnknownResponse()

virtual void anna::diameter::comm::Session::eventUnknownResponse ( const anna::DataBlock &  response, const anna::diameter::comm::OriginHost *  myNode  )

protectedpure virtualnoexcept

Handler for diameter session responses out of context

Parameters

response	Answer data block object without context match
myNode	Own origin host

expire()

virtual void anna::diameter::comm::Session::expire ( anna::timex::Engine *  timeController )

inlineprotectedvirtualnoexcept

metodo que debemos re-escribir para particularizar el comportamiento de nuestra clase cuando el Engine notifica que se ha sobrepasado la duracion maxima del evento si que se invoque a ninguno de los metodos que lo cancelarian. Una vez invocado a este metodo el evento se considera cancelado y todos sus recursos son liberados automaticamente por Engine.

Parameters

timeController

Controlador de tiempo asociado al evento que esta expirando.

Implements anna::timex::TimeEvent.

{;}

expireResponse()

virtual void anna::diameter::comm::Session::expireResponse ( Response *  )

protectedvirtual

finalize()

virtual void anna::diameter::comm::Session::finalize ( )

protectedvirtual

generateNextSequences()

void anna::diameter::comm::Session::generateNextSequences ( )

inlineprotected

{ a_nextHopByHop++; a_nextEndToEnd++; }

getAddress()

virtual const std::string& anna::diameter::comm::Session::getAddress ( ) const

pure virtual

Diameter server address, ip or hostname (remote for client-session, local for server-session).

Returns

Diameter server address (remote for client-session, local for server-session).

Implemented in anna::diameter::comm::ClientSession, and anna::diameter::comm::ServerSession.

getClassCodeTimeout()

anna::Millisecond anna::diameter::comm::Session::getClassCodeTimeout ( const ClassCode::_v  v ) const

inline

Timeout configured for class code v requests.

Returns

Timeout configured for class code v requests.

{ return a_timeouts [v]; }

getLastIncomingActivityTime()

const anna::Millisecond& anna::diameter::comm::Session::getLastIncomingActivityTime ( ) const

inline

Gets the timestamp for last incoming activity over the session.

Returns

Last incoming activity timestamp.

{ return a_lastIncomingActivityTime; }

getLastOutgoingActivityTime()

const anna::Millisecond& anna::diameter::comm::Session::getLastOutgoingActivityTime ( ) const

inline

Gets the timestamp for last outgoing activity over the session.

Returns

Last outgoing activity timestamp.

{ return a_lastOutgoingActivityTime; }

getNextEndToEnd()

const EndToEnd& anna::diameter::comm::Session::getNextEndToEnd ( ) const

inline

Returns the next end-to-end which will be used over the diameter session to send a message It is recommended to fix the message with this value (or store along with the message), for application context identification purposes

{ return a_nextEndToEnd; }

getNextHopByHop()

const HopByHop& anna::diameter::comm::Session::getNextHopByHop ( ) const

inline

Returns the next hop-by-hop which will be used over the diameter session to send a message It is recommended to fix the message with this value (or store along with the message), for application context identification purposes

{ return a_nextHopByHop; }

getOnDisconnect()

OnDisconnect::_v anna::diameter::comm::Session::getOnDisconnect ( ) const

inline

Returns behaviour on 'Disconnecting' state, about unbind action (ignore/wait pending answers).

Returns

behaviour on 'Disconnecting' state, about unbind action (ignore/wait pending answers).

{ return a_onDisconnect; }

getOTARequests()

int anna::diameter::comm::Session::getOTARequests ( ) const

inline

Gets the number of requests messages over-the-air.

Returns

OTA messages.

{ return a_responses.size(); }

getPort()

virtual int anna::diameter::comm::Session::getPort ( ) const

pure virtual

Diameter server listen port (remote for client-session, local for server-session).

Returns

Diameter server listen port (remote for client-session, local for server-session).

Implemented in anna::diameter::comm::ClientSession, and anna::diameter::comm::ServerSession.

getSocketId()

int anna::diameter::comm::Session::getSocketId ( ) const

inline

Socket id.

Returns

Socket id.

{ return a_socketId; }

getState()

State::_v anna::diameter::comm::Session::getState ( ) const

inline

Session state.

Returns

State for this session.

{ return a_state; }

idle()

bool anna::diameter::comm::Session::idle ( ) const

inline

Returns idle state (no pending answers).

Returns

Idle state.

{ return (getOTARequests() == 0); }

initialize()

virtual void anna::diameter::comm::Session::initialize ( )

protectedvirtual

Reimplemented in anna::diameter::comm::ClientSession, and anna::diameter::comm::ServerSession.

initializeSequences()

void anna::diameter::comm::Session::initializeSequences ( )

protected

isBound()

bool anna::diameter::comm::Session::isBound ( ) const

inline

Returns true when diameter server is connected (application level) false in other case.

Returns

true when diameter server is connected (application level) false in other case.

{ return a_state == State::Bound; }

notifyOrphansOnExpiration()

void anna::diameter::comm::Session::notifyOrphansOnExpiration ( bool  defer = true )

inline

In order to avoid message burst during failover procedures (alternate server forwardings done by application), orphan request notification could be deferred to expiration event. This is the default behaviour, however if need to notice quickly the transport failure for such requets, 'false' should be established. Result code of 'OrphanTimeout' will be configured at response instance.

This only applies to client-sessions because is not usual to send request from server sessions and there wont be impact notifying orphan requests at the moment of the transport failure.

Delayed notification for orphan request due to transport failures

{ a_notifyOrphansOnExpiration = defer; }

receive()

virtual void anna::diameter::comm::Session::receive ( const anna::comm::Message &  message )

protectedpure virtualnoexcept

Handlers

response() [1/2]

static Response* anna::diameter::comm::Session::response ( response_iterator  ii )

inlinestaticprotected

{ return response_container::data(ii); }

response() [2/2]

static const Response* anna::diameter::comm::Session::response ( const_response_iterator  ii )

inlinestaticprotected

{ return response_container::data(ii); }

response_add()

void anna::diameter::comm::Session::response_add ( Response *  response )

protected

response_begin() [1/2]

response_iterator anna::diameter::comm::Session::response_begin ( )

inlineprotected

{ return a_responses.begin(); }

response_begin() [2/2]

const_response_iterator anna::diameter::comm::Session::response_begin ( ) const

inlineprotected

{ return a_responses.begin(); }

response_end() [1/2]

response_iterator anna::diameter::comm::Session::response_end ( )

inlineprotected

{ return a_responses.end(); }

response_end() [2/2]

const_response_iterator anna::diameter::comm::Session::response_end ( ) const

inlineprotected

{ return a_responses.end(); }

response_erase()

void anna::diameter::comm::Session::response_erase ( Response *  response )

protected

response_find()

Response* anna::diameter::comm::Session::response_find ( const HopByHop  hopByHop )

protectednoexcept

send() [1/2]

virtual const Response* anna::diameter::comm::Session::send ( const Message *  message )

pure virtualnoexcept

Implemented in anna::diameter::comm::ClientSession, and anna::diameter::comm::ServerSession.

send() [2/2]

const Response* anna::diameter::comm::Session::send ( const Message &  message )

inlinenoexcept

{ return send(&message); }

Here is the call graph for this function:

sendDPA()

void anna::diameter::comm::Session::sendDPA ( const Engine *  commEngine, const anna::DataBlock &  dprDataBlock  )

protectednoexcept

setClassCodeTimeout()

void anna::diameter::comm::Session::setClassCodeTimeout ( const ClassCode::_v  v, const anna::Millisecond &  millisecond  )

inline

Set timeout to consider failed a request.

Parameters

v	Requests class code.
millisecond	Milliseconds wait before considering the requests failed.

Timers are internally managed and automatically activated.

{ a_timeouts [v] = millisecond;  }

setOnDisconnect()

void anna::diameter::comm::Session::setOnDisconnect ( const OnDisconnect::_v  onDisconnect )

inline

Sets behaviour on 'Disconnecting' state, about unbind action (ignore/wait pending answers).

Parameters

onDisconnect

Behaviour on 'Disconnecting' state, about unbind action (ignore/wait pending answers).

{ a_onDisconnect = onDisconnect; }

setState()

virtual void anna::diameter::comm::Session::setState ( State::_v  state )

protectedvirtual

timerStarted()

virtual void anna::diameter::comm::Session::timerStarted ( )

inlineprotectedvirtual

{;}

timerStopped()

virtual void anna::diameter::comm::Session::timerStopped ( )

inlineprotectedvirtual

{;}

unbind()

virtual bool anna::diameter::comm::Session::unbind ( bool  forceDisconnect = false )

pure virtualnoexcept

Implemented in anna::diameter::comm::ClientSession, and anna::diameter::comm::ServerSession.

updateIncomingActivityTime()

virtual void anna::diameter::comm::Session::updateIncomingActivityTime ( )

protectedvirtual

updateOutgoingActivityTime()

virtual void anna::diameter::comm::Session::updateOutgoingActivityTime ( )

protectedvirtual

Friends And Related Function Documentation

anna::diameter::comm::Timer

friend class anna::diameter::comm::Timer

friend

Response

friend class Response

friend

Member Data Documentation

a_actionTimer

anna::diameter::comm::Timer* anna::diameter::comm::Session::a_actionTimer

protected

a_className

const char* anna::diameter::comm::Session::a_className

protected

a_lastIncomingActivityTime

anna::Millisecond anna::diameter::comm::Session::a_lastIncomingActivityTime

protected

a_lastOutgoingActivityTime

anna::Millisecond anna::diameter::comm::Session::a_lastOutgoingActivityTime

protected

a_nextEndToEnd

EndToEnd anna::diameter::comm::Session::a_nextEndToEnd

protected

a_nextHopByHop

HopByHop anna::diameter::comm::Session::a_nextHopByHop

protected

a_notifyOrphansOnExpiration

bool anna::diameter::comm::Session::a_notifyOrphansOnExpiration

protected

a_onDisconnect

OnDisconnect::_v anna::diameter::comm::Session::a_onDisconnect

protected

a_responses

response_container anna::diameter::comm::Session::a_responses

protected

a_socketId

int anna::diameter::comm::Session::a_socketId

protected

a_state

State::_v anna::diameter::comm::Session::a_state

protected

a_timeController

anna::timex::Engine* anna::diameter::comm::Session::a_timeController

protected

a_timeouts

anna::Millisecond anna::diameter::comm::Session::a_timeouts[ClassCode::Max]

protected

DefaultPort

const int anna::diameter::comm::Session::DefaultPort

static

Default diameter port

DefaultTimeout

const anna::Millisecond anna::diameter::comm::Session::DefaultTimeout

static

Default timeout for application message requests over the session.

---

The documentation for this class was generated from the following file:

• /tmp/anna/include/anna/diameter.comm/Session.hpp
