anna::diameter::comm::Engine Class Reference

#include <Engine.hpp>

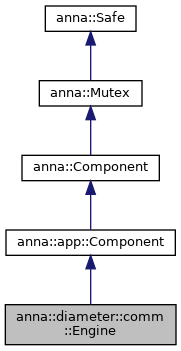

Inheritance diagram for anna::diameter::comm::Engine:

Collaboration diagram for anna::diameter::comm::Engine:

Public Member Functions
void	setOriginRealmName (const std::string &originRealmName)
void	setOriginHostName (const std::string &originHostName)
const std::string &	getOriginRealmName () const
const std::string &	getOriginHostName () const
void	raiseAutoRecovery (bool autoRecovery=true) noexcept(false)
bool	getAutoBind () const
void	setAutoBind (const bool autoBind)
void	setMaxConnectionDelay (const anna::Millisecond &maxConnectionDelay)
const anna::Millisecond &	getMaxConnectionDelay ()
bool	bind () noexcept(false)
void	setClientCER (const anna::DataBlock &cer) noexcept(false)
void	setClientCER (const std::string &cerPathFile) noexcept(false)
void	setClientCER (const anna::U32 &applicationId) noexcept(false)
void	setClientDWR (const anna::DataBlock &dwr) noexcept(false)
void	setClientDWR (const std::string &dwrPathFile="") noexcept(false)
void	setWatchdogPeriod (const anna::Millisecond &wp) noexcept(false)
int	getNumberOfClientSessionsPerServer () const
void	setNumberOfClientSessionsPerServer (int numberOfClientSessionsPerServer)
ClientSession *	findClientSession (const std::string &addr, int port, int socketId, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) noexcept(false)
ClientSession *	findClientSession (const std::string &key, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) noexcept(false)
Server *	findServer (const std::string &addr, int port, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) noexcept(false)
Entity *	findEntity (const socket_v &socketList, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) noexcept(false)
Entity *	findEntity (const std::string &addr1, int port1, const std::string &addr2, int port2, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) noexcept(false)
Entity *	createEntity (const socket_v &socketList, const std::string &description="") noexcept(false)
Entity *	createEntity (const std::string &addr1, int port1, const std::string &addr2, int port2, const std::string &description="") noexcept(false)
LocalServer *	findLocalServer (const std::string &addr, int port, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) noexcept(false)
ServerSession *	findServerSession (int socketId, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) noexcept(false)
LocalServer *	createLocalServer (const std::string &addr, int port=Session::DefaultPort, int maxConnections=-1, const anna::Millisecond &allowedInactivityTime=ServerSession::DefaultAllowedInactivityTime, int category=1, const std::string &description="") noexcept(false)
void	close (bool destroy=false) noexcept(false)
void	closeEntities (bool destroy=false) noexcept(false)
void	closeEntity (Entity *entity, bool destroy=false) noexcept(false)
void	closeLocalServers (bool destroy=false) noexcept(false)
void	closeLocalServer (LocalServer *localServer, bool destroy=false) noexcept(false)
int	getOTARequestsForEntities () const
int	getOTARequestsForLocalServers () const
int	getOTARequests () const
bool	idleForEntities () const
bool	idleForLocalServers () const
bool	idle () const
bool	broadcastEntities (const Message *message) noexcept(false)
bool	broadcastEntities (const Message &message) noexcept(false)
bool	broadcastLocalServers (const Message *message) noexcept(false)
bool	broadcastLocalServers (const Message &message) noexcept(false)
virtual std::string	asString (void) const
virtual anna::xml::Node *	asXML (anna::xml::Node *parent) const
virtual void	bindingClientSession (const ClientSession *) const
virtual void	readDPA (anna::DataBlock &dpa, const anna::DataBlock &dpr) const
void	setCEA (const std::string &ceaPathfile)
const std::string &	getCEA () const
virtual void	readCEA (anna::DataBlock &cea, const anna::DataBlock &cer) const
virtual void	readDWA (anna::DataBlock &dwa, const anna::DataBlock &dwr) const
const Response *	sendRealmHost (const Message *message, const std::string &destinationRealm, const std::string &destinationHost="") noexcept(false)
void	resetStatistics ()
void	lazyInitialize () noexcept(false)
Public Member Functions inherited from anna::app::Component
virtual	~Component ()
void	attach () noexcept(false)
Public Member Functions inherited from anna::Component
const char *	getClassName () const
Public Member Functions inherited from anna::Mutex
	Mutex (const Mode::_v mode=Mode::Recursive)
virtual	~Mutex ()
virtual void	lock () noexcept(false)
virtual void	unlock ()
bool	trylock () noexcept(false)
	operator const pthread_mutex_t * () const

Protected Member Functions
	Engine (const char *className, const stack::Dictionary *baseProtocolDictionary)
Server *	createServer (Entity *, const socket_t &) noexcept(false)
void	closeServer (Server *, bool) noexcept(false)
ClientSession *	createClientSession (Server *, int) noexcept(false)
void	closeClientSession (ClientSession *, bool) noexcept(false)
Server *	allocateServer ()
void	releaseServer (Server *)
ClientSession *	allocateClientSession ()
void	releaseClientSession (ClientSession *)
virtual Entity *	allocateEntity ()
virtual void	releaseEntity (Entity *)
virtual LocalServer *	allocateLocalServer ()
virtual void	releaseLocalServer (LocalServer *)
codec::Engine *	getBaseProtocolCodecEngine () const
Protected Member Functions inherited from anna::app::Component
	Component (const char *className)
State::_v	getState () const
void	addPredecessor (const char *componentName)
void	initialize () noexcept(false)
void	stop ()
virtual void	kill ()
Protected Member Functions inherited from anna::Component
	Component (const char *className)
	Component (const Component &other)
Protected Member Functions inherited from anna::Safe
	Safe ()

Friends
class	Session
class	ClientSession
class	ServerSession
class	ServerSocket
class	Server
class	Entity
class	LocalServer

Additional Inherited Members
Protected Attributes inherited from anna::Component
const std::string	a_className

Detailed Description

General manager for connections to several diameter servers and from diameter clients.

Optimizes creation, finding and releasing of established client-sessions to a certain number of diameter servers through entities. Optimizes creation, finding and releasing of established server-sessions from a certain number of diameter clients through local servers.

Implementation example:

class MyEngine : public diameter::comm::Engine {
public:
   MyEngine () {;}

private:
   anna::Recycler<MyEntity> a_entities;

   anna::diameter::comm::Entity* allocateEntity () { return a_entities.create (); }

   void releaseEntity (anna::diameter::comm::Entity* entity) {
      MyEntity* aux = static_cast <MyEntity*> (entity);
      a_entities.release (aux);
   }


   anna::diameter::comm::LocalServer* allocateLocalServer () { return a_localServers.create (); }

   void releaseLocalServer (anna::diameter::comm::LocalServer* localServer) {
      MyLocalServer* aux = static_cast <MyLocalServer*> (localServer);
      a_localServers.release (aux);
   }
};

Constructor & Destructor Documentation

Engine()

anna::diameter::comm::Engine::Engine ( const char *  className, const stack::Dictionary *  baseProtocolDictionary  )

protected

Constructor.

Parameters

className

Component class name

baseProtocolDictionary

This will be used internally when calling @readCEA, @readDPA and @readDWA on servers, and also used during base protocol messages tracing (if debug traces are enabled). You could provide NULL, but you must be sure that neither of the former situations are going to happen or an exception will be thrown (using setClientCER and setClientDWR with DataBlock arguments, expects externally encoded messages and could help). It is recommended to set a base protocol dictionary loading 'source/diameter/stack/setups' dictionaries (for example 'avps_ietf.xml' plus 'commands_baseProtocol.xml'), or using the dictionary creation API. The dictionary could also be an application stack, the only condition is containing the resources to build base protocol messages.

Member Function Documentation

allocateClientSession()

ClientSession* anna::diameter::comm::Engine::allocateClientSession ( )

protected

allocateEntity()

virtual Entity* anna::diameter::comm::Engine::allocateEntity ( )

inlineprotectedvirtual

Entity allocator method.

It is recommended to use anna::Recycler for entities creation/releasing.

See also

anna::Recycler

{ return NULL; }

allocateLocalServer()

virtual LocalServer* anna::diameter::comm::Engine::allocateLocalServer ( )

inlineprotectedvirtual

Local server allocator method.

It is recommended to use anna::Recycler for entities creation/releasing.

See also

anna::Recycler

{ return NULL; }

allocateServer()

Server* anna::diameter::comm::Engine::allocateServer ( )

protected

asString()

virtual std::string anna::diameter::comm::Engine::asString ( void  ) const

virtual

Class string representation

Returns

String with class content

Reimplemented from anna::app::Component.

asXML()

virtual anna::xml::Node* anna::diameter::comm::Engine::asXML ( anna::xml::Node *  parent ) const

virtual

Class XML representation.

Parameters

parent

XML node over which we will put instance information.

Returns

XML documentcon with class content.

Reimplemented from anna::app::Component.

bind()

bool anna::diameter::comm::Engine::bind ( )

noexcept

Binds engine entities.

Returns

Returns true if all client-session were successfully bound

bindingClientSession()

virtual void anna::diameter::comm::Engine::bindingClientSession ( const ClientSession *  ) const

inlinevirtual

When a subyacent client session is going to be bound, this method is invoked before. Default implementation do nothing.

{;}

broadcastEntities() [1/2]

bool anna::diameter::comm::Engine::broadcastEntities ( const Message *  message )

noexcept

Sent a message to all the engine entities. It is used, i.e., in Disconnect-Peer-Request procedure over the engine.

Parameters

message

Message which is being sent.

Returns

Returns true (success) only when broadcast is success over all the engine entities. If any entity fails, then false is returned. Broadcast try to send all over the resources in spite of any fail.

broadcastEntities() [2/2]

bool anna::diameter::comm::Engine::broadcastEntities ( const Message &  message )

inlinenoexcept

{ return broadcastEntities(&message); }

Here is the call graph for this function:

broadcastLocalServers() [1/2]

bool anna::diameter::comm::Engine::broadcastLocalServers ( const Message *  message )

noexcept

Sent a message through all the engine local servers. It is used, i.e., in Disconnect-Peer-Request procedure over the engine.

Parameters

message

Message which is being sent.

Returns

Returns true (success) only when broadcast is success over all the engine local servers. If any local server fails, then false is returned. Broadcast try to send all over the resources in spite of any fail.

broadcastLocalServers() [2/2]

bool anna::diameter::comm::Engine::broadcastLocalServers ( const Message &  message )

inlinenoexcept

{ return broadcastLocalServers(&message); }

Here is the call graph for this function:

close()

void anna::diameter::comm::Engine::close ( bool  destroy = false )

inlinenoexcept

Close all the engine resources (entities and local servers) Optionally all resources may be freed passing true

Parameters

destroy

Free all engine entity resources

{ closeEntities(destroy); closeLocalServers(destroy); }

closeClientSession()

void anna::diameter::comm::Engine::closeClientSession ( ClientSession *  , bool    )

protectednoexcept

closeEntities()

void anna::diameter::comm::Engine::closeEntities ( bool  destroy = false )

noexcept

Close all the engine entities (close servers, then close client-sessions within them). Depending on client-session configuration ('OnDisconnect' behaviour), pending answers will be wait (graceful) or ignored (immediate-abrupt close). Optionally all entities resources may be freed passing true; in this case, close is immediately performed:

Parameters

destroy

Free all engine entity resources

closeEntity()

void anna::diameter::comm::Engine::closeEntity ( Entity *  entity, bool  destroy = false  )

noexcept

Close entity servers (then, client-sessions included) and optionally free resources including entity itself. If entity is null, this operation has no effect.

Parameters

entity	Diameter entity to be closed.
destroy	Deletes entity over the engine and all its resources.

closeLocalServer()

void anna::diameter::comm::Engine::closeLocalServer ( LocalServer *  localServer, bool  destroy = false  )

noexcept

Close local server socket and its children server sessions. This is useful when detecting service lost. When service is ready to handle traffic, a new server socket would be created by mean #LocalServer::enable() and new connections could be accepted. Optionally local server resources may be freed passing true.

Parameters

localServer	Local server to be closed.
destroy	Deletes local server over engine and all its resources (server sessions within it).

closeLocalServers()

void anna::diameter::comm::Engine::closeLocalServers ( bool  destroy = false )

noexcept

Close all the engine local server sockets including their children server sessions. Optionally all local server resources may be freed passing true.

Parameters

destroy

Free all engine local servers resources and server sessions within them.

closeServer()

void anna::diameter::comm::Engine::closeServer ( Server *  , bool    )

protectednoexcept

createClientSession()

ClientSession* anna::diameter::comm::Engine::createClientSession ( Server *  , int    )

protectednoexcept

createEntity() [1/2]

Entity* anna::diameter::comm::Engine::createEntity ( const socket_v &  socketList, const std::string &  description = ""  )

noexcept

Creates a diameter entity with provided parameters.

Depending on auto-bind configuration, capabilities exchange request will be or won't be performed over the entity client-sessions.

Parameters

socketList	Diameter server priority list (priority-ordered) in order to define whole entity.
description	Optional entity description (empty by default)

Returns

The entity created or exception when any server (address/port) already exists for another entity.

Warning

The entity won't be almost operative until a notification by mean 'ClientSession::eventResponse' indicates that 'ClassCode::Bind' has been correctly performed for any included client-session.

createEntity() [2/2]

Entity* anna::diameter::comm::Engine::createEntity ( const std::string &  addr1, int  port1, const std::string &  addr2, int  port2, const std::string &  description = ""  )

noexcept

Creates a standard (dual) diameter entity with provided parameters.

Depending on auto-bind configuration, capabilities exchange request will be or won't be performed over the entity client-sessions.

Parameters

addr1	Diameter primary server address (ip or hostname).
port1	Diameter primary server port.
addr2	Diameter secondary server address (ip or hostname).
port2	Diameter secondary server port.
description	Optional entity description (empty by default)

Returns

The standard entity created or exception when any server (address/port) already exists for another entity.

Warning

The entity won't be almost operative until a notification by mean 'ClientSession::eventResponse' indicates that 'ClassCode::Bind' has been correctly performed for any included client-session.

createLocalServer()

LocalServer* anna::diameter::comm::Engine::createLocalServer ( const std::string &  addr, int  port = Session::DefaultPort, int  maxConnections = -1, const anna::Millisecond &  allowedInactivityTime = ServerSession::DefaultAllowedInactivityTime, int  category = 1, const std::string &  description = ""  )

noexcept

Creates a diameter local server with provided parameters.

Server socket address could be an IPv4 or hostname. Default port will be standard 3868 for diameter agents, but any other could be configured. Socket server could be created with any max accepted connections: zero value means temporarily disabled and negative values assume no limit (shared bind) for incomming connections.

Parameters

addr	Diameter server socket address (ip or hostname).
port	Diameter server socket port (standard 3868 by default).
maxConnections	Diameter server max sessions allowed (no limit by default).
allowedInactivityTime	Max inactivity time for server sessions over the local server before being reset.
category	Optional socket server category (1 by default).
description	Optional socket server description (empty by default).

Returns

The local server created or exception when is already created.

createServer()

Server* anna::diameter::comm::Engine::createServer ( Entity *  , const socket_t &    )

protectednoexcept

findClientSession() [1/2]

ClientSession* anna::diameter::comm::Engine::findClientSession ( const std::string &  addr, int  port, int  socketId, anna::Exception::Mode::_v  emode = anna::Exception::Mode::Throw  )

noexcept

Returns client-session instance identified by (address, port, socketId) provided.

Parameters

addr	Diameter server address (ip or hostname).
port	Diameter server port.
socketId	Diameter server socket id.
emode	Action when no client-session is found with provided parameters (Throw/Ignore).

Returns

The client-session instance identified by (address, port, socketId) provided.

Warning

If no client-session found, an exception is launched by default.

findClientSession() [2/2]

ClientSession* anna::diameter::comm::Engine::findClientSession ( const std::string &  key, anna::Exception::Mode::_v  emode = anna::Exception::Mode::Throw  )

noexcept

Same as findClientSession, but providing client session key (<address>:<port>|<socket id>="">)

findEntity() [1/2]

Entity* anna::diameter::comm::Engine::findEntity ( const socket_v &  socketList, anna::Exception::Mode::_v  emode = anna::Exception::Mode::Throw  )

noexcept

Returns entity instance identified by internal index.

Parameters

socketList	Diameter entity servers list.
emode	Action when no client-session is found with provided parameters (Throw/Ignore).

Returns

The entity instance identified by id provided.

Warning

If no entity found, an exception is launched by default.

findEntity() [2/2]

Entity* anna::diameter::comm::Engine::findEntity ( const std::string &  addr1, int  port1, const std::string &  addr2, int  port2, anna::Exception::Mode::_v  emode = anna::Exception::Mode::Throw  )

noexcept

Returns entity instance identified by internal index.

Parameters

addr1	Diameter primary server address (ip or hostname).
port1	Diameter primary server port.
addr2	Diameter secondary server address (ip or hostname).
port2	Diameter secondary server port.
emode	Action when no client-session is found with provided parameters (Throw/Ignore).

Returns

The entity instance identified by id provided.

Warning

If no entity found, an exception is launched by default.

findLocalServer()

LocalServer* anna::diameter::comm::Engine::findLocalServer ( const std::string &  addr, int  port, anna::Exception::Mode::_v  emode = anna::Exception::Mode::Throw  )

noexcept

Returns local server instance identified by pair (address, port) provided.

Parameters

addr	Diameter server socket address (ip or hostname).
port	Diameter server socket port.
emode	Action when no local server is found with provided parameters (Throw/Ignore).

Returns

The local server instance identified by pair (address, port) provided.

Warning

If no local server found, an exception is launched by default.

findServer()

Server* anna::diameter::comm::Engine::findServer ( const std::string &  addr, int  port, anna::Exception::Mode::_v  emode = anna::Exception::Mode::Throw  )

noexcept

Returns server instance identified by pair (address, port) provided.

Parameters

addr	Diameter server address (ip or hostname).
port	Diameter server port.
emode	Action when no client-session is found with provided parameters (Throw/Ignore).

Returns

The server instance identified by pair (address, port) provided.

Warning

If no server found, an exception is launched by default.

findServerSession()

ServerSession* anna::diameter::comm::Engine::findServerSession ( int  socketId, anna::Exception::Mode::_v  emode = anna::Exception::Mode::Throw  )

noexcept

Returns server-session instance identified by INetAddress serialization provided.

Parameters

socketId	Hash for Client Socket INetAddress serialization
emode	Action when no server-session is found with provided parameters (Throw/Ignore).

Returns

The server-session instance identified by global unique socketId provided.

Warning

If no server-session found, an exception is launched by default.

getAutoBind()

bool anna::diameter::comm::Engine::getAutoBind ( ) const

inline

Returns automatic bind indicator for client-sessions. By default true will be used.

Returns

Value for automatic connection bind.

{ return a_autoBind; }

getBaseProtocolCodecEngine()

codec::Engine* anna::diameter::comm::Engine::getBaseProtocolCodecEngine ( ) const

inlineprotected

{ return const_cast<codec::Engine *>(&a_baseProtocolCodecEngine); }

Here is the call graph for this function:

getCEA()

const std::string& anna::diameter::comm::Engine::getCEA ( ) const

inline

Gets optional CEA from file, when default is not enough

Returns

Path file for the CEA xml message provided

{ return a_ceaPathfile; }

getMaxConnectionDelay()

const anna::Millisecond& anna::diameter::comm::Engine::getMaxConnectionDelay ( )

inline

Gets the milliseconds wait to achieve a client connection to server by mean connect primitive. Returns the global engine value, but it could be overwritten through each client session (#ClientSession::setMaxConnectionDelay). Default value is 'anna::comm::ClientSocket::DefaultMaxConnectionDelay'.

Returns

Milliseconds wait to get connection

{ return a_maxConnectionDelay; }

getNumberOfClientSessionsPerServer()

int anna::diameter::comm::Engine::getNumberOfClientSessionsPerServer ( ) const

inline

Gets the number of client-sessions per server.

Returns

numberOfClientSessionsPerServer Number of client-sessions per server.

{ return a_numberOfClientSessionsPerServer; }

getOriginHostName()

const std::string& anna::diameter::comm::Engine::getOriginHostName ( ) const

inline

Gets the configured diameter application origin host

Returns

Diameter application node origin host

{ return a_originHost; }

getOriginRealmName()

const std::string& anna::diameter::comm::Engine::getOriginRealmName ( ) const

inline

Gets the configured diameter application node origin realm

Returns

Diameter application node origin realm

{ return a_originRealm; }

getOTARequests()

int anna::diameter::comm::Engine::getOTARequests ( ) const

inline

Gets the number of requests messages over-the-air for entities plus local servers.

Returns

OTA messages.

{ return (getOTARequestsForEntities() + getOTARequestsForLocalServers()); }

getOTARequestsForEntities()

int anna::diameter::comm::Engine::getOTARequestsForEntities

(

)

const

Gets the number of requests messages over-the-air for entities.

Returns

OTA messages.

getOTARequestsForLocalServers()

int anna::diameter::comm::Engine::getOTARequestsForLocalServers

(

)

const

Gets the number of requests messages over-the-air for local servers.

Returns

OTA messages.

idle()

bool anna::diameter::comm::Engine::idle ( ) const

inline

Returns idle state (no pending answers for entities or local servers).

Returns

Idle state.

{ return (getOTARequests() == 0); }

idleForEntities()

bool anna::diameter::comm::Engine::idleForEntities ( ) const

inline

Returns idle state (no pending answers) for entities.

Returns

Idle state.

{ return (getOTARequestsForEntities() == 0); }

idleForLocalServers()

bool anna::diameter::comm::Engine::idleForLocalServers ( ) const

inline

Returns idle state (no pending answers).

Returns

Idle state.

{ return (getOTARequestsForLocalServers() == 0); }

lazyInitialize()

void anna::diameter::comm::Engine::lazyInitialize ( )

noexcept

Engine lazy initialization. Used if the engine is created when application is already running; for example on dynamic realms registration. At the moment is not actually needed (nothing is done at initialization), but it is recommended to start the component and set its state as 'running' from the point of view of the application.

raiseAutoRecovery()

void anna::diameter::comm::Engine::raiseAutoRecovery ( bool  autoRecovery = true )

noexcept

Propagate auto recovery configuration to entities within engine. Recovery period is configured at anna::comm::Communicator::setRecoveryTime (5 seconds by default). All the client client-sessions created throught createEntity, will be created based on the engine auto-recovery value (enabled by default). You could access entities, servers or client-sessions independently to use this method, but recovery time should be updated through communicator and will apply for new created connections.

Parameters

autoRecovery

Auto recovery indicator. True by default.

readCEA()

virtual void anna::diameter::comm::Engine::readCEA ( anna::DataBlock &  cea, const anna::DataBlock &  cer  ) const

virtual

Class user should implement this method in order to define Capabilities-Exchange-Answer for received CER over server socket. Origin-Host and Origin-Realm are configured at comm::Engine with hostname and FQDN (Fully Qualified Domain Name). Default implementation imply CEA with DIAMETER_SUCCESS Result-Code, and own domain node parameters, but application should analyze the CER message in order to accept it or not (with apropiate non-success Result-Code). If was invoked, a message from file is used instead of default implementation. Any other implementation is responsible to build a valid CEA diameter message, even ignoring a possible cea from file when is used:

If one peer sends a CER message to another Peer and receiver does not have support for

1) any common application then it must return the CEA with Result-Code Avp set to DIAMETER_NO_COMMON_APPLICATION and should disconnect the transport layer connection (automatically done by diameter::comm module). 2) no common security mechanism then it must return the CEA with Result-Code Avp set to DIAMETER_NO_COMMON_SECURITY and should disconnect the transport layer connection (automatically done by diameter::comm module). 3) if CER is received from any unknown peer then receiver should discard the message, or send the CEA with the Result-Code Avp set to DIAMETER_UNKNOWN_PEER.

If the local implementation policy permits to receive CER from unknown hosts, a successful CEA MAY be returned, and the life time of the peer entry in PEER-Table is equal to the lifetime of the transport connection. If in any case transport connection fails then all the pending transactions destined to the unknown peer can be discarded.

The CER and CEA messages MUST NOT be proxied, redirected or relayed. Since CER/CEA messages can not be proxied, but still it is possible that proxy will receive a CER message and proxy does not have any peer to handle the application requested in CER, in this case proxy set the E bit in CEA and set the Result-Code Avp to DIAMETER_UNABLE_TO_DELIVER, sends back to CER generator peer.

Parameters

cea	CEA datablock passed as reference. Empty cea implies to discard CER received.
cer	Corresponding CER received (sequence values must be taken into account in order to build CEA)

readDPA()

virtual void anna::diameter::comm::Engine::readDPA ( anna::DataBlock &  dpa, const anna::DataBlock &  dpr  ) const

virtual

Class user should implement this method in order to define Disconnect-Peer-Answer for last received DPR. Origin-Host and Origin-Realm are configured at comm::Engine with hostname and FQDN (Fully Qualified Domain Name). Default implementation imply DPA with DIAMETER_SUCCESS Result-Code, allowing remote disconnection. Any other implementation is responsible to build a valid DPA diameter message. DPR/DPA procedure is disabled with empty definition of this method: no DPA will be sent when DPR is received.

Parameters

dpa	DPA datablock passed as reference
dpr	Corresponding DPR received (sequence values must be taken into account in order to build DPA)

readDWA()

virtual void anna::diameter::comm::Engine::readDWA ( anna::DataBlock &  dwa, const anna::DataBlock &  dwr  ) const

virtual

Class user should implement this method in order to define Device-Watchdog-Answer for received DWR over server socket. Origin-Host and Origin-Realm are configured at comm::Engine with hostname and FQDN (Fully Qualified Domain Name). Default implementation imply DWA with DIAMETER_SUCCESS Result-Code, and own domain node parameters. Any other implementation is responsible to build a valid DWA diameter message.

Parameters

dwa	DWA datablock passed as reference
dwr	Corresponding DWR received (sequence values must be taken into account in order to build DWA)

releaseClientSession()

void anna::diameter::comm::Engine::releaseClientSession ( ClientSession *  )

protected

releaseEntity()

virtual void anna::diameter::comm::Engine::releaseEntity ( Entity *  )

inlineprotectedvirtual

Invoked to free entities.

See also

anna::Recycler

{;}

releaseLocalServer()

virtual void anna::diameter::comm::Engine::releaseLocalServer ( LocalServer *  )

inlineprotectedvirtual

Invoked to free local servers.

See also

anna::Recycler

{;}

releaseServer()

void anna::diameter::comm::Engine::releaseServer ( Server *  )

protected

resetStatistics()

void anna::diameter::comm::Engine::resetStatistics

(

)

Reset engine statistics. At the moment, only diameter servers processing time is observed.

sendRealmHost()

const Response* anna::diameter::comm::Engine::sendRealmHost ( const Message *  message, const std::string &  destinationRealm, const std::string &  destinationHost = ""  )

noexcept

DRA basics: CER information is gathered on every server session managed by the diameter comm engine. You could send the message to a specific realm, and optionally you could restrict a host inside it. This is common for requests (answers are normally sent through the same source server session where the request was received). Exception will be thrown if not found an available server session for the Destination-Realm and/or Destination-Host provided

Parameters

destinationRealm	If empty, NULL is returned, because is nonsense to specify a host out of realm context
destinationHost	If empty, no restriction is applied within the target realm node. Random delivery is applied for the available server sessions

Returns

transactional response reference, or NULL if answer is sent

setAutoBind()

void anna::diameter::comm::Engine::setAutoBind ( const bool  autoBind )

inline

Sets automatic connection bind indicator for client-sessions. If not asigned, it will be true.

Parameters

autoBind

Value for automatic connection bind.

In order to change bind timer, first client-session must be created without autobind, modify time parameter and then invoking bind.

{ a_autoBind = autoBind; }

setCEA()

void anna::diameter::comm::Engine::setCEA ( const std::string &  ceaPathfile )

inline

Sets optional CEA from file, when default is not enough

Parameters

&ceaPathfile

Path file for the CEA xml message provided

{ a_ceaPathfile = ceaPathfile; }

setClientCER() [1/3]

void anna::diameter::comm::Engine::setClientCER ( const anna::DataBlock &  cer )

noexcept

Sets CER diameter messages to be used over created client-sessions.

Parameters

cer	Capabilities-Exchange-Request message (encoded) for the client-sessions bind.

setClientCER() [2/3]

void anna::diameter::comm::Engine::setClientCER ( const std::string &  cerPathFile )

noexcept

Sets CER diameter messages to be used over created client-sessions.

Parameters

cerPathFile

Capabilities-Exchange-Request xml message path file for the client-sessions bind.

setClientCER() [3/3]

void anna::diameter::comm::Engine::setClientCER ( const anna::U32 &  applicationId )

noexcept

Sets DEFAULT CER diameter messages to be used over created client-sessions.

Parameters

applicationId

Application-Id for the Auth-Application-Id AVP.

setClientDWR() [1/2]

void anna::diameter::comm::Engine::setClientDWR ( const anna::DataBlock &  dwr )

noexcept

Sets DWR for diameter keep-alive over client-sessions

Parameters

dwr	Device-Watchdog-Request message (encoded) for the client-sessions keep-alive.

setClientDWR() [2/2]

void anna::diameter::comm::Engine::setClientDWR ( const std::string &  dwrPathFile = "" )

noexcept

Sets DWR for diameter keep-alive over client-sessions

Parameters

cerPathFile

Device-Watchdog-Request xml message path file for the client-sessions keep-alive. If empty provided, a DEFAULT DWR will be built.

setMaxConnectionDelay()

void anna::diameter::comm::Engine::setMaxConnectionDelay ( const anna::Millisecond &  maxConnectionDelay )

inline

Sets the milliseconds wait to achieve a client connection to server by mean connect primitive. This is a general value for born client-sessions over engine. Particular configuration could be done through #ClientSession::setMaxConnectionDelay.

Parameters

maxConnectionDelay

Milliseconds wait to get connection

{ a_maxConnectionDelay = maxConnectionDelay; }

setNumberOfClientSessionsPerServer()

void anna::diameter::comm::Engine::setNumberOfClientSessionsPerServer ( int  numberOfClientSessionsPerServer )

inline

Sets the number of client-sessions per server. Its recommended to set this global configuration although it is possible to configure each client-session separately.

Parameters

numberOfClientSessionsPerServer

Number of client-sessions per server.

{ a_numberOfClientSessionsPerServer = numberOfClientSessionsPerServer; }

setOriginHostName()

void anna::diameter::comm::Engine::setOriginHostName

(

const std::string &

originHostName

)

Diameter application origin host

Parameters

originHostName

Used to configure the Origin-Host for outgoing messages. If not configured or empty string provided, hostname (system name) will be set.

setOriginRealmName()

void anna::diameter::comm::Engine::setOriginRealmName

(

const std::string &

originRealmName

)

Diameter application node origin realm

Parameters

originRealmName

Used to configure the Origin-Realm for outgoing messages. If not configured or empty string provided, host domainname will be set.

setWatchdogPeriod()

void anna::diameter::comm::Engine::setWatchdogPeriod ( const anna::Millisecond &  wp )

noexcept

Sets the watchdog period (DWR) for client-sessions. Its recommended to set this global configuration although it is possible to configure each client-session separately.

Parameters

wp	Watchdog period.

Friends And Related Function Documentation

ClientSession

friend class ClientSession

friend

Entity

friend class Entity

friend

LocalServer

friend class LocalServer

friend

Server

friend class Server

friend

ServerSession

friend class ServerSession

friend

ServerSocket

friend class ServerSocket

friend

Session

friend class Session

friend

---

The documentation for this class was generated from the following file:

• /tmp/anna/include/anna/diameter.comm/Engine.hpp
