anna::diameter::helpers::base::functions Struct Reference

#include <functions.hpp>

Static Public Member Functions
static U32	getResultCode (const anna::DataBlock &) noexcept(false)
static void	decodeSessionId (const std::string &sessionId, std::string &diameterIdentity, U32 &high, U32 &low, std::string &optional) noexcept(false)
static std::string	getSessionId (const anna::DataBlock &db, std::string &diameterIdentity, U32 &high, U32 &low, std::string &optional) noexcept(false)
static std::string	getSessionId (const anna::DataBlock &db) noexcept(false)
static std::string	getOriginHost (const anna::DataBlock &db) noexcept(false)

Member Function Documentation

decodeSessionId()

static void anna::diameter::helpers::base::functions::decodeSessionId ( const std::string &  sessionId, std::string &  diameterIdentity, U32 &  high, U32 &  low, std::string &  optional  )

staticnoexcept

Gets the tokenized by ';' Session-Id contents defined as '<DiameterIdentity>;<high 32 bits>;<low 32 bits>[;<optional value>="">]':

Parameters

sessionId	Provided UTF8String Session-Id content
diameterIdentity	Sender Diameter Identity
high	High 64-bit-sequence part
low	Low 64-bit-sequence part
optional	Empty string when missing

getOriginHost()

static std::string anna::diameter::helpers::base::functions::getOriginHost ( const anna::DataBlock &  db )

staticnoexcept

Gets the fixed Origin-Host AVP (DiameterIdentity) from datablock provided.

Parameters

db	Provided Message DataBlock

Returns

Origin-Host

getResultCode()

static U32 anna::diameter::helpers::base::functions::getResultCode ( const anna::DataBlock &  )

staticnoexcept

Gets the first level command Result-Code from datablock provided

Parameters

db	Provided Message DataBlock

Returns

Result-Code value

getSessionId() [1/2]

static std::string anna::diameter::helpers::base::functions::getSessionId ( const anna::DataBlock &  db, std::string &  diameterIdentity, U32 &  high, U32 &  low, std::string &  optional  )

staticnoexcept

Gets the fixed Session-Id AVP (UTF8String) from datablock provided. Also gets the tokenized by ';' Session-Id contents defined as '<DiameterIdentity>;<high 32 bits>;<low 32 bits>[;<optional value>="">]':

Parameters

db	Provided Message DataBlock
diameterIdentity	Sender Diameter Identity
high	High 64-bit-sequence part
low	Low 64-bit-sequence part
optional	Empty string when missing

Returns

Session-Id

getSessionId() [2/2]

static std::string anna::diameter::helpers::base::functions::getSessionId ( const anna::DataBlock &  db )

inlinestaticnoexcept

Gets the fixed Session-Id AVP (UTF8String) from datablock provided.

Parameters

db	Provided Message DataBlock

Returns

Session-Id

                                                                         {
    std::string dummy1, dummy4;
    U32 dummy2, dummy3;
    return (getSessionId(db, dummy1, dummy2, dummy3, dummy4));
  }

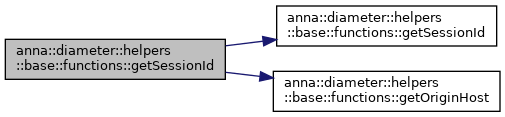

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• /tmp/anna/include/anna/diameter/helpers/base/functions.hpp
