#include <ApplicationMessageOamModule.hpp>

Inheritance diagram for anna::diameter::comm::ApplicationMessageOamModule:

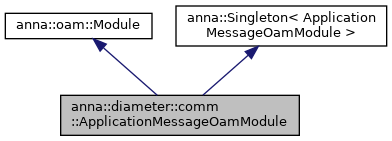

Collaboration diagram for anna::diameter::comm::ApplicationMessageOamModule:

Classes
struct	Counter

Public Member Functions
std::string	getDefaultInternalCounterDescription (const int &counterType) const

void	createStackCounterScope (int, unsigned int) noexcept(false)

void	count (int messageCode, int resultCode, unsigned int stackId, const int &type, const int &amount=1) noexcept(false)

int	getCounterTypes () const

int	monoStackScopeId () const

Public Member Functions inherited from anna::oam::Module
	Module (const std::string &name)

virtual	~Module ()

int	scopes () const

void	enableCounters (void)

void	disableCounters (void)

void	enableAlarms (void)

void	disableAlarms (void)

bool	countersEnabled () const

bool	alarmsEnabled () const

void	enableAlarmsPreffix (void)

void	enableAlarmsSuffix (void)

void	disableAlarmsPreffix (void)

void	disableAlarmsSuffix (void)

void	setHandler (Handler *handler)

void	initializeCounterScope (const int &scopeId, const std::string &description="") noexcept(false)

void	setActiveCounterScope (const int &scopeId)

const anna::oam::CounterScope *	getActiveCounterScope () const

virtual std::string	getDefaultInternalAlarmDescription (const int &type) const

void	registerCounter (const int &type, const std::string &description, const int &offset) noexcept(false)

void	registerAlarm (const int &type, const std::string &description, const int &externalId, const std::string &dynamicVariablesCSL, const int &activationId, const int &cancellationId=-1) noexcept(false)

const char *	getName () const

const counter_data_t *	counter (const int &type) const

const alarm_data_t *	alarm (const int &type) const

void	count (const int &type, const int &amount=1) noexcept(false)

int	resetCounters (const int &scopeId=-1)

void	setCounterRecorder (CounterRecorder *counterRecorder)

void	recordCounters () noexcept(false)

void	activateAlarm (int type,...) const noexcept(false)

void	cancelAlarm (int type,...) const noexcept(false)

virtual std::string	asString (void) const

virtual anna::xml::Node *	asXML (anna::xml::Node *parent) const

Friends
class	anna::Singleton< ApplicationMessageOamModule >

Additional Inherited Members
Static Public Member Functions inherited from anna::Singleton< ApplicationMessageOamModule >
static ApplicationMessageOamModule &	instantiate ()

static void	release ()

Static Public Attributes inherited from anna::oam::Module
static const int	MaxScope = 1000

Protected Member Functions inherited from anna::oam::Module
virtual void	readAlarmPreffixComponents (std::vector< std::string > &components) const

virtual void	readAlarmSuffixComponents (std::vector< std::string > &components) const

Detailed Description

Special OAM module which tracks a replica for a set of counter types for each different application message managed by the communication layer and result code in case of answer, in a specific stack id. For example, if one process is managing CCR/A, RAR/A for Gx and AAR/A, RAR/A for Rx, then two counter scopes should be registered (one for Gx, another for Rx). Each scope will store counters sets for each diameter event (message and optionally result code description). Having N counters within each scope (for example N=14), the total capacity is N/(number of counter types) different events:

  Scope for Gx:

    Credit-Control-Request_SentOK_AsClient
    Credit-Control-Request_SentNOK_AsClient
    Credit-Control-Answer_SentOK_AsClient
    Credit-Control-Answer_SentNOK_AsClient
    Credit-Control-Request_Received_AsClient
    Credit-Control-Answer_Received_AsClient
    Credit-Control-Answer_UnknownReceived_AsClient
    Credit-Control-Request_SentOK_AsServer
    Credit-Control-Request_SentNOK_AsServer
    Credit-Control-Answer_SentOK_AsServer
    Credit-Control-Answer_SentNOK_AsServer
    Credit-Control-Request_Received_AsServer
    Credit-Control-Answer_Received_AsServer
    Credit-Control-Answer_UnknownReceived_AsServer
    Re-Auth-Request_SentOK_AsClient
    Re-Auth-Request_SentNOK_AsClient
    Re-Auth-Answer_SentOK_AsClient
    Re-Auth-Answer_SentNOK_AsClient
    Re-Auth-Request_Received_AsClient
    Re-Auth-Answer_Received_AsClient
    Re-Auth-Answer_UnknownReceived_AsClient
    Re-Auth-Request_SentOK_AsServer
    Re-Auth-Request_SentNOK_AsServer
    Re-Auth-Answer_SentOK_AsServer
    Re-Auth-Answer_SentNOK_AsServer
    Re-Auth-Request_Received_AsServer
    Re-Auth-Answer_Received_AsServer
    Re-Auth-Answer_UnknownReceived_AsServer

  Scope for Rx:

    AA-Request_SentOK_AsClient
    AA-Request_SentNOK_AsClient
    AA-Answer_SentOK_AsClient
    AA-Answer_SentNOK_AsClient
    AA-Request_Received_AsClient
    AA-Answer_Received_AsClient
    AA-Answer_UnknownReceived_AsClient
    AA-Request_SentOK_AsServer
    AA-Request_SentNOK_AsServer
    AA-Answer_SentOK_AsServer
    AA-Answer_SentNOK_AsServer
    AA-Request_Received_AsServer
    AA-Answer_Received_AsServer
    AA-Answer_UnknownReceived_AsServer
    Re-Auth-Request_SentOK_AsClient
    Re-Auth-Request_SentNOK_AsClient
    Re-Auth-Answer_SentOK_AsClient
    Re-Auth-Answer_SentNOK_AsClient
    Re-Auth-Request_Received_AsClient
    Re-Auth-Answer_Received_AsClient
    Re-Auth-Answer_UnknownReceived_AsClient
    Re-Auth-Request_SentOK_AsServer
    Re-Auth-Request_SentNOK_AsServer
    Re-Auth-Answer_SentOK_AsServer
    Re-Auth-Answer_SentNOK_AsServer
    Re-Auth-Request_Received_AsServer
    Re-Auth-Answer_Received_AsServer
    Re-Auth-Answer_UnknownReceived_AsServer

  Note: all other combinations including the result code for answers
        may be dynamically created.

Member Function Documentation

◆ count()

void anna::diameter::comm::ApplicationMessageOamModule::count	(	int	messageCode,
		int	resultCode,
		unsigned int	stackId,
		const int &	type,
		const int &	amount = `1`
	)

noexcept

◆ createStackCounterScope()

void anna::diameter::comm::ApplicationMessageOamModule::createStackCounterScope	(	int	,
		unsigned	int
	)

noexcept

◆ getCounterTypes()

int anna::diameter::comm::ApplicationMessageOamModule::getCounterTypes ( ) const

inline

151 { return a_counter_types; }

◆ getDefaultInternalCounterDescription()

std::string anna::diameter::comm::ApplicationMessageOamModule::getDefaultInternalCounterDescription ( const int & type ) const

inlinevirtual

Child oam module classes should define descriptions for each enum type. A good practice would be the use of 'anna_declare_enum' macro in order to define names for enum types. This is an oam-internal description which should be redefined at application layer during registering. Returns undefined by default.

Parameters

type	Counter enum-identification within the own context/module

Returns: Default counter description

Reimplemented from anna::oam::Module.

141 { return Counter::asCString((Counter::_v)counterType); }

anna::diameter::comm::ApplicationMessageOamModule::Counter::_v

_v

Definition: ApplicationMessageOamModule.hpp:117

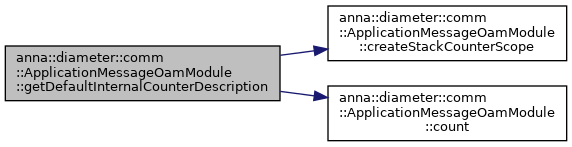

Here is the call graph for this function:

◆ monoStackScopeId()

int anna::diameter::comm::ApplicationMessageOamModule::monoStackScopeId ( ) const

inline

                                {
     return ((a_stackMap.size() != 1) ? -1 : a_stackMap.begin()->second);
   }

Friends And Related Function Documentation

◆ anna::Singleton< ApplicationMessageOamModule >

friend class anna::Singleton< ApplicationMessageOamModule >

friend

The documentation for this class was generated from the following file:

/tmp/anna/include/anna/diameter.comm/ApplicationMessageOamModule.hpp
