#include <Message.hpp>

Inheritance diagram for anna::diameter::codec::tme::Message:

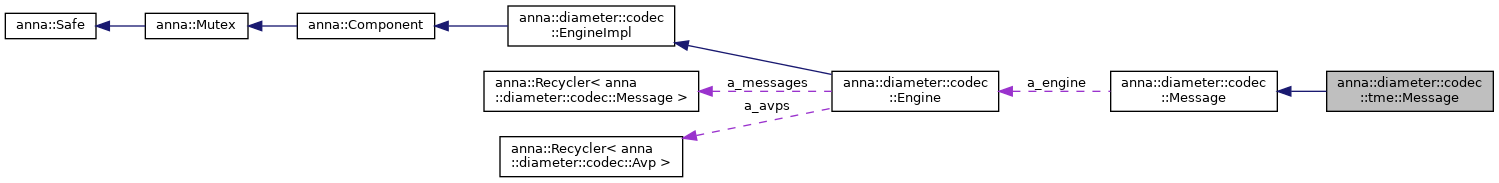

Collaboration diagram for anna::diameter::codec::tme::Message:

[legend]

Public Member Functions
	Message (Engine *engine=NULL)

	Message (CommandId id, Engine *engine=NULL)

Public Member Functions inherited from anna::diameter::codec::Message
	Message (Engine *engine=NULL)

	Message (CommandId id, Engine *engine=NULL)

void	setEngine (Engine *engine)

virtual	~Message ()

void	setId (CommandId id) noexcept(false)

void	setId (const char *name) noexcept(false)

void	setVersion (U8 version)

void	setProxiableBit (bool activate=true)

void	setErrorBit (bool activate=true)

void	setPotentiallyReTransmittedMessageBit (bool activate=true)

void	setApplicationId (U32 aid) noexcept(false)

void	setHopByHop (U32 hbh)

void	setEndToEnd (U32 ete)

void	setHeaderToAnswer (const Message &request) noexcept(false)

void	setStandardToAnswer (const Message &request, const std::string &originHost, const std::string &originRealm, int resultCode=helpers::base::AVPVALUES__Result_Code::DIAMETER_SUCCESS) noexcept(false)

void	setResultCode (int rc=helpers::base::AVPVALUES__Result_Code::DIAMETER_SUCCESS) noexcept(false)

int	getResultCode () const

Avp *	addAvp (AvpId id) noexcept(false)

Avp *	addAvp (const char *name) noexcept(false)

Avp *	addAvp (Avp *avp)

bool	removeAvp (AvpId id, int ocurrence=1) noexcept(false)

bool	removeAvp (const char *name, int ocurrence=1) noexcept(false)

virtual void	clear (bool resetEngine=true) noexcept(false)

void	decode (const anna::DataBlock &db, Message *ptrAnswer=NULL) noexcept(false)

void	fix ()

bool	valid (Message *ptrAnswer=NULL) const noexcept(false)

void	fromXML (const anna::xml::Node *messageNode) noexcept(false)

void	loadXMLFile (const std::string &xmlPathFile) noexcept(false)

void	loadXMLString (const std::string &xmlString) noexcept(false)

const CommandId &	getId () const

U8	getVersion () const

bool	isRequest () const

bool	isAnswer () const

const U32 &	getApplicationId () const

const U32 &	getHopByHop () const

const U32 &	getEndToEnd () const

const anna::diameter::stack::Command *	getStackCommand () const noexcept(false)

bool	requestBit () const

bool	proxiableBit () const

bool	errorBit () const

bool	potentiallyReTransmittedMessageBit () const

const Avp *	getAvp (AvpId id, int ocurrence=1, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) const noexcept(false)

Avp *	getAvp (AvpId id, int ocurrence=1, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) noexcept(false)

const Avp *	getAvp (const char *name, int ocurrence=1, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) const noexcept(false)

Avp *	getAvp (const char *name, int ocurrence=1, anna::Exception::Mode::_v emode=anna::Exception::Mode::Throw) noexcept(false)

int	countAvp (AvpId id) const

int	countAvp (const char *name) const noexcept(false)

int	countChilds () const

const anna::DataBlock &	code () noexcept(false)

anna::xml::Node *	asXML (anna::xml::Node *parent) const

std::string	asXMLString (bool normalize=false) const

bool	isLike (const std::string &pattern) const

Protected Member Functions
virtual void	initialize ()

Protected Member Functions inherited from anna::diameter::codec::Message
virtual Engine *	getEngine () const noexcept(false)

Additional Inherited Members
Static Public Attributes inherited from anna::diameter::codec::Message
static const int	HeaderLength

static const U8	RBitMask

static const U8	PBitMask

static const U8	EBitMask

static const U8	TBitMask

Protected Attributes inherited from anna::diameter::codec::Message
Engine *	a_engine

Detailed Description

Diameter TME message generic container Manages tme-specific formats (Unsigned16, ISDNAddress, ISDNNumber)

Constructor & Destructor Documentation

◆ Message() [1/2]

anna::diameter::codec::tme::Message::Message ( Engine * engine = NULL )

inline

Default constructor

Parameters

engine Codec engine used

57 : anna::diameter::codec::Message(engine) {;}

anna::diameter::codec::Message

Definition: Message.hpp:74

◆ Message() [2/2]

anna::diameter::codec::tme::Message::Message	(	CommandId	id,
		Engine *	engine = `NULL`
	)

inline

Identified constructor

Parameters

id	Command identifier as pair (code,request-indicator).
engine	Codec engine used

64 : anna::diameter::codec::Message(id, engine) {;}

anna::diameter::codec::Message

Definition: Message.hpp:74

Member Function Documentation

◆ initialize()

virtual void anna::diameter::codec::tme::Message::initialize ( )

protectedvirtual

Codec Engine getter: avoids have to create base engine when using its child Initializes Message class information. Any reimplementation must first invoke base class method.

Reimplemented from anna::diameter::codec::Message.

The documentation for this class was generated from the following file:

/tmp/anna/include/anna/diameter/codec/tme/Message.hpp
